In this article, we will demonstrate to you how to configure a DNS forwarder in Windows Server 2012 R2. We assume you have already configured DNS on both servers.
Following five are prerequisites:
Ensure that the Administrator account has a strong password.
A static IP is configured.
Latest windows updates are installed.
DNS is already configured on both machines (primary DNS and secondary DNS servers).
Setting Up a DNS Forwarder in Windows Server 2012 R2
Step 1: Open server manager dashboard and click on Tools. Scroll down the menu and click on DNS .
Step 2: In DNS manager, right-click and scroll down the menu. Click Properties

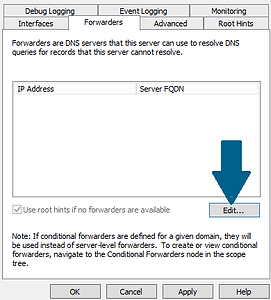

Step 3: Click Forwarders tab and then click Edit
Step 4: Enter the IP address of your secondary DNS server you want to forward DNS queries. Here you can choose also to insert your ISP DNS server or Google DNS 220.127.116.11
Step 5: Click OK
Step 6: Go to your secondary DNS server manager and expand the machine name. Right-click Forward Look Up Zones and scroll down the menu. Click New Zone
Step 7: Click Next
Step 8: Choose Primary zone and click Next

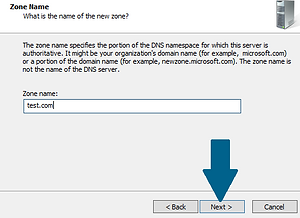

Step 9: Provide the zone name and click Next
Step 10: Choose to create the zone file with the suggested name and click Next.
Step 11: Select "Do not allow Dynamic Updates" and click Next.
Step 12: Click Finish to create the new DNS zone.
Step 13: Right-click the zone you just created and scroll down the menu. Click New Host (A or AAAA)
Step 14: Provide the name and IP address of this host and click Add Host
Step 15: Click OK to create the A-Record in the DNS zone.
Step 16: Go to your client machine and configure the DNS settings. Provide the IP address of your primary DNS server in Preferred DNS server field
Great, you have setup a DNS forwarder and tested the configuration. If a domain name www.test.com is resolved successfully, then the DNS forwarder is working.
